DRILLS for glass

The drills are essential tools in the industry glass, since they play a crucial role in creating precise and safe drilling. These specialized machines allow you to make holes in glass of different sizes and shapes, which is essential in the manufacturing of products such as windows, doors, mirrors and glass furniture.

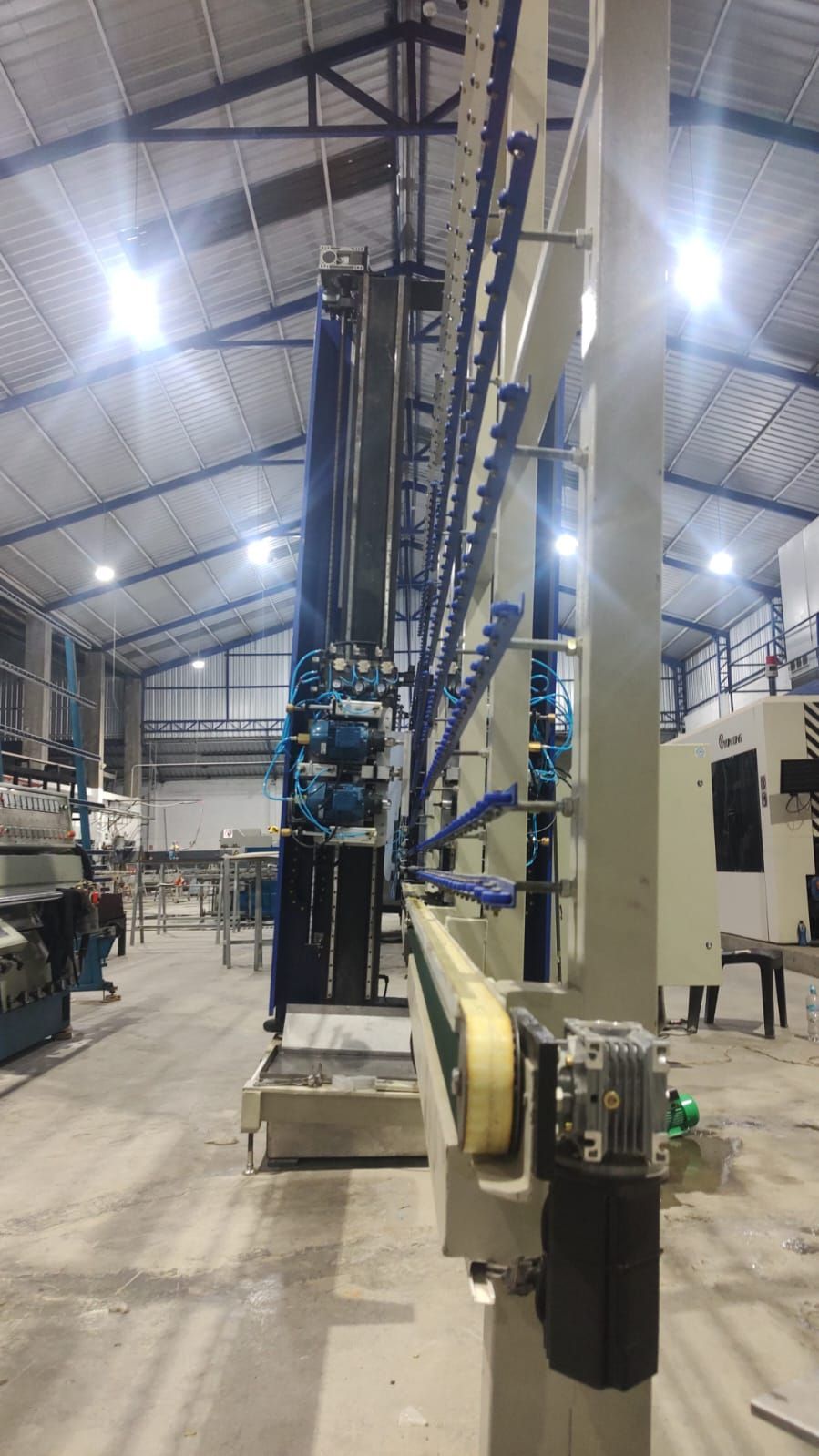

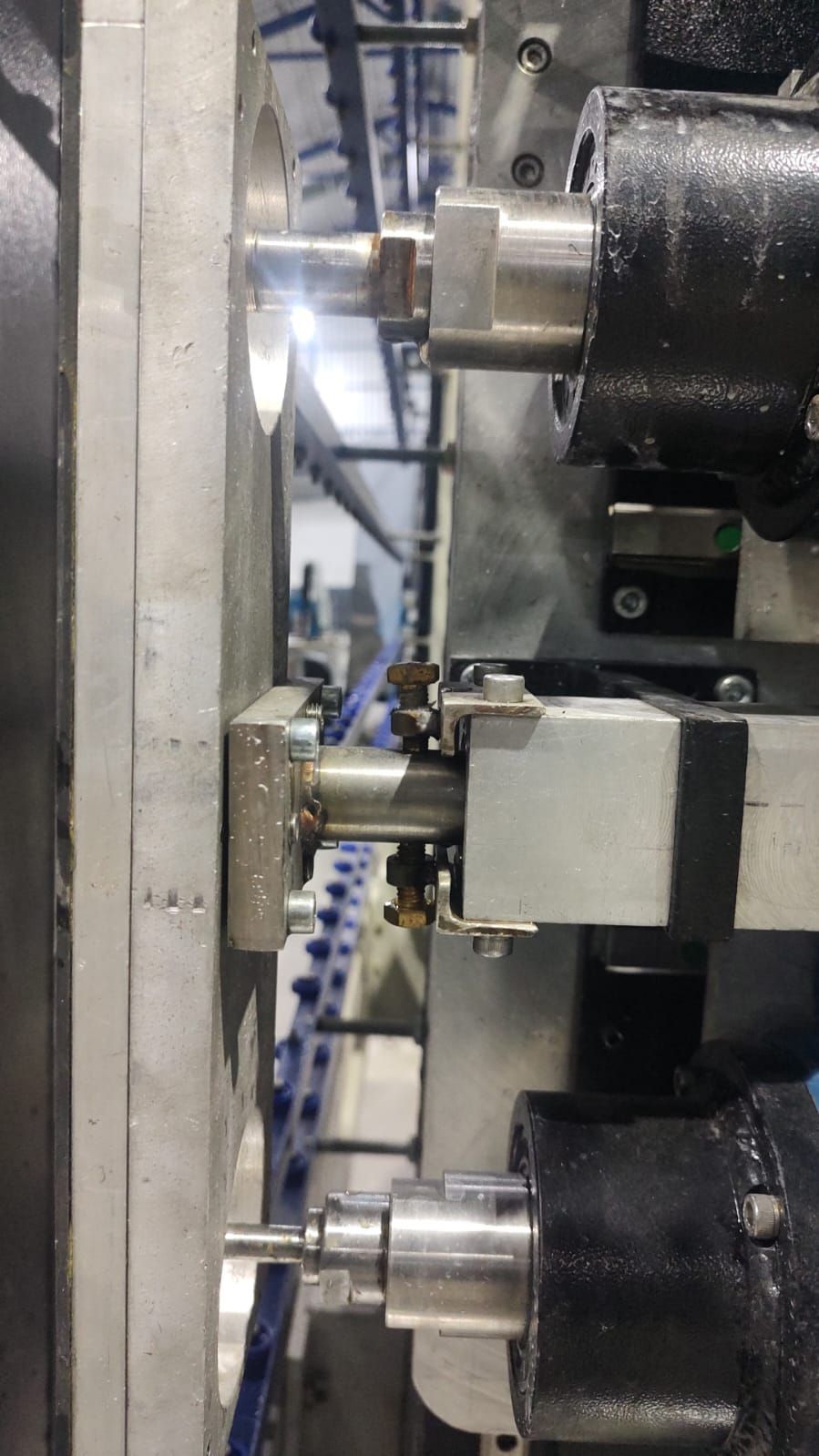

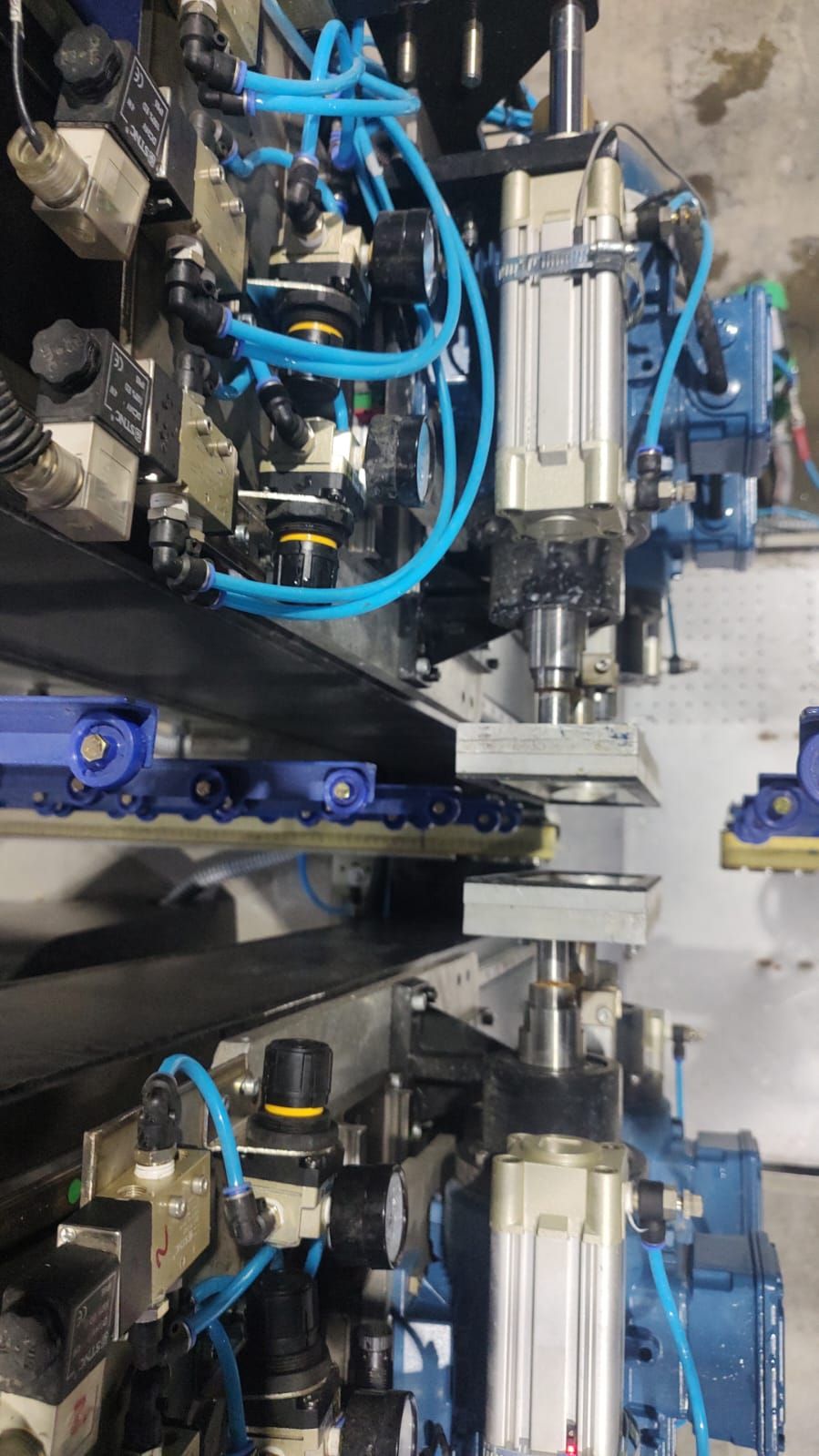

CNC VERTICAL DRILL

TVB2500 CNC

  • It has numerical control to program all movements. It allows lateral movement of the glass and the head, and has a hold-down to hold the glass.
  • It has a drill sequence with rear and front drills, speed control, drill feed and water control for cooling.
  • The numerical control also allows you to program the drills in the glass piece and store the programs.
  • Equipped with four heads in total to use drill bits of different diameters.
  • It includes a cooling system with a tank and closed circuit water pump.

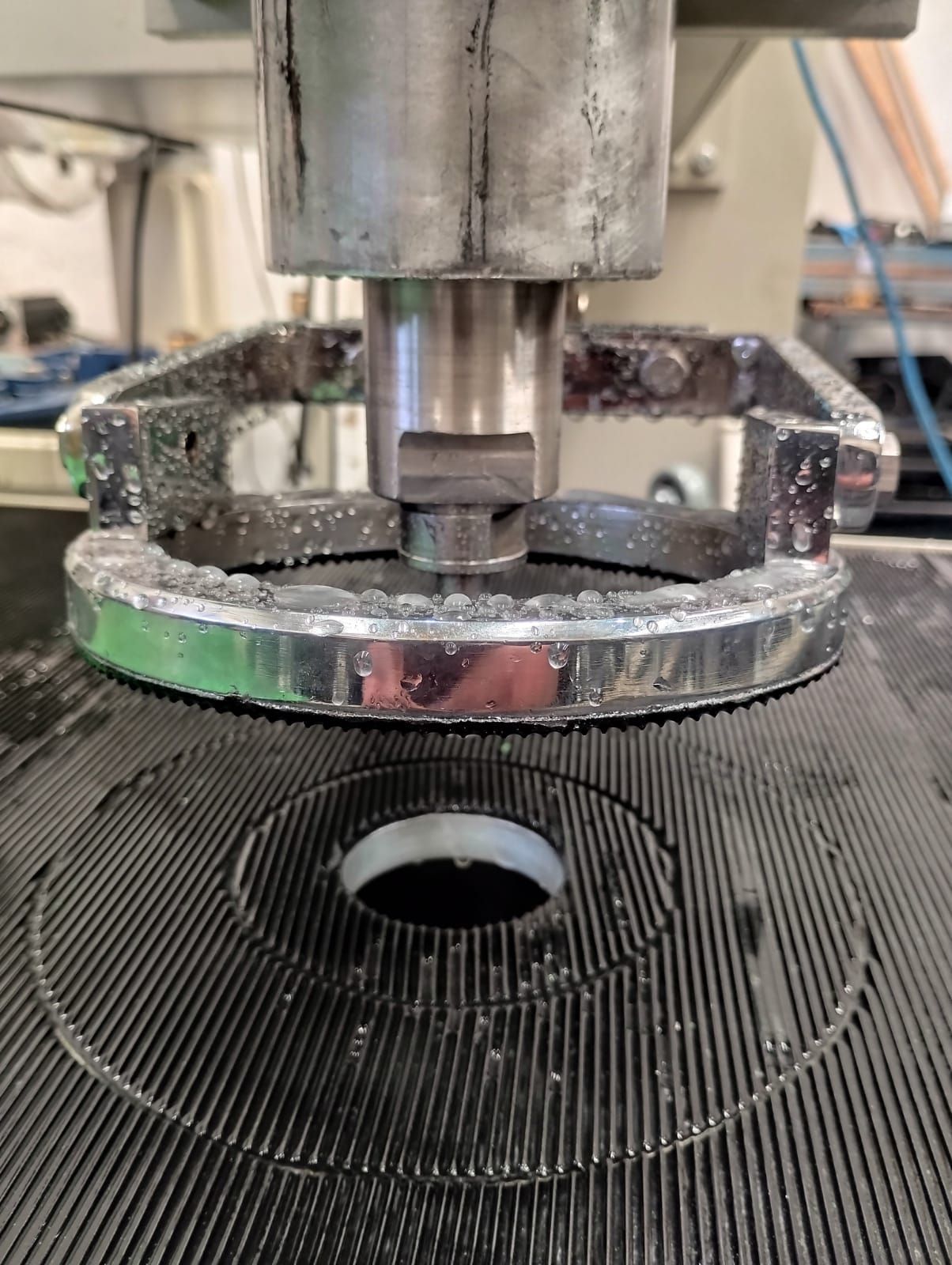

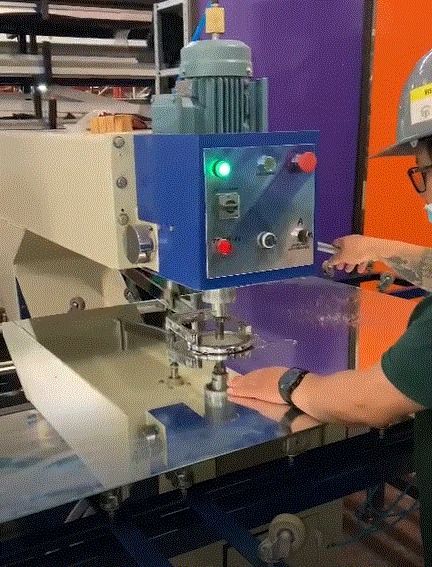

DRILL T110- 2CAB

  • With an ergonomic and quite robust structure, free of any vibration in the action.
  • Drilling with large drill bits.
  • Automatic drilling in the lower drill bit and manual drilling in the upper part.
  • Lower drilling depth regulation regulated from the front knob by means of a shock absorber.
  • Glass fixing tires used according to the diameter to be drilled.
  • Drill bit holder with self-centering cone and fixing thread.

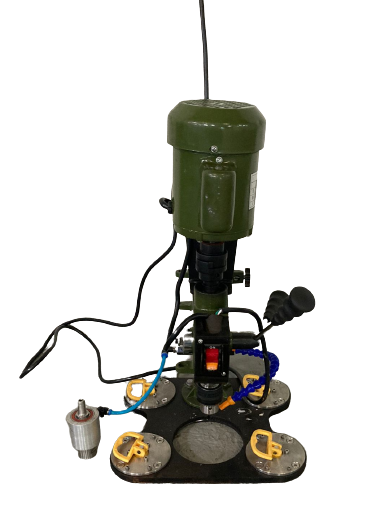

PORTABLE DRILL. REF. TP50

Portable drill transport without distance from center to drill because it is placed on the surface of the glass.


Technical data:

  • Single-phase voltage 110v.
  • Switch 1.
  • Speed 1700RPM.
  • Maximum drill bit to drill 3mm.
  • Maximum drill bit to drill 70mm.
  • Maximum glass to drill 3mm.
  • Cooling - adjustable central.

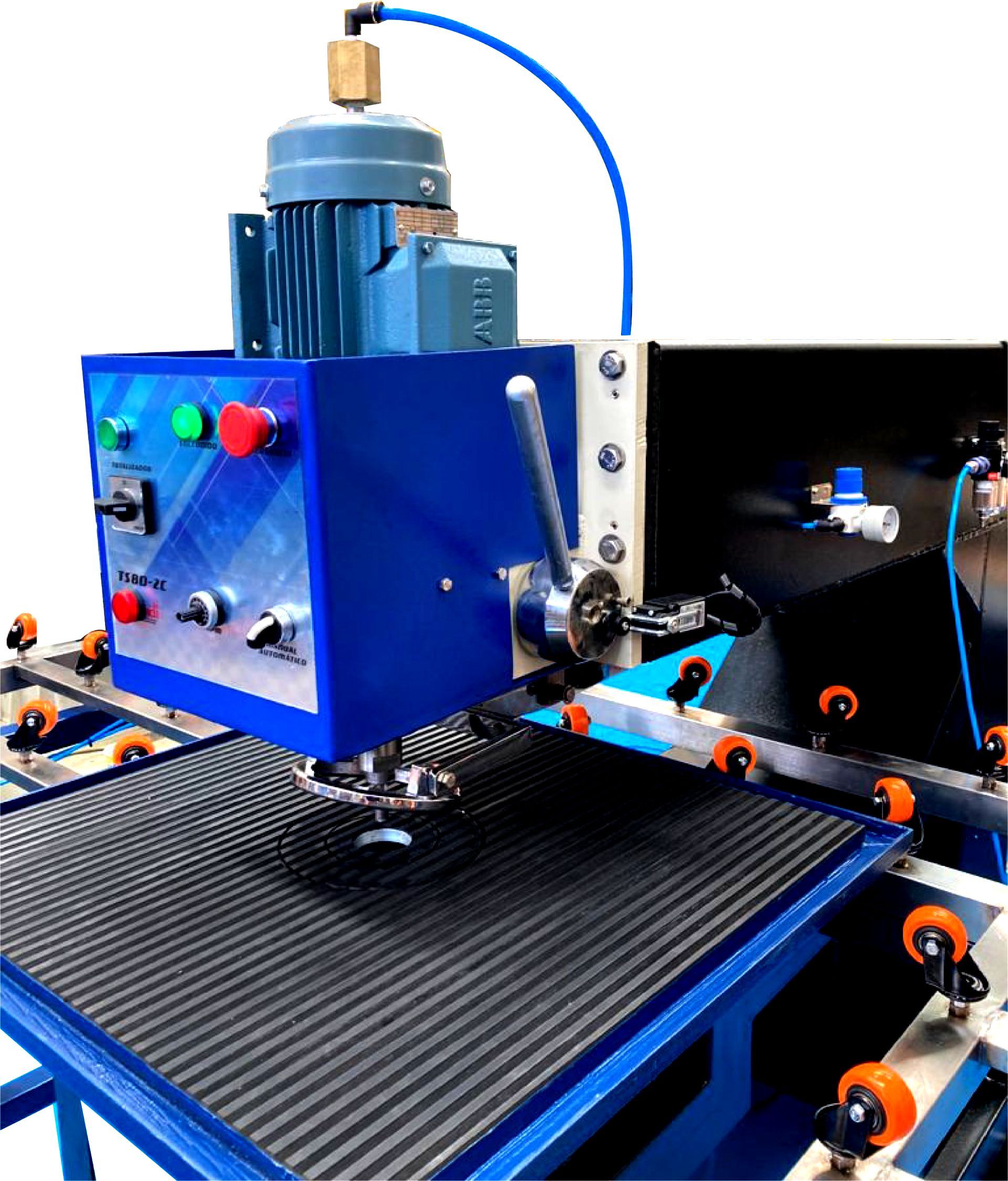

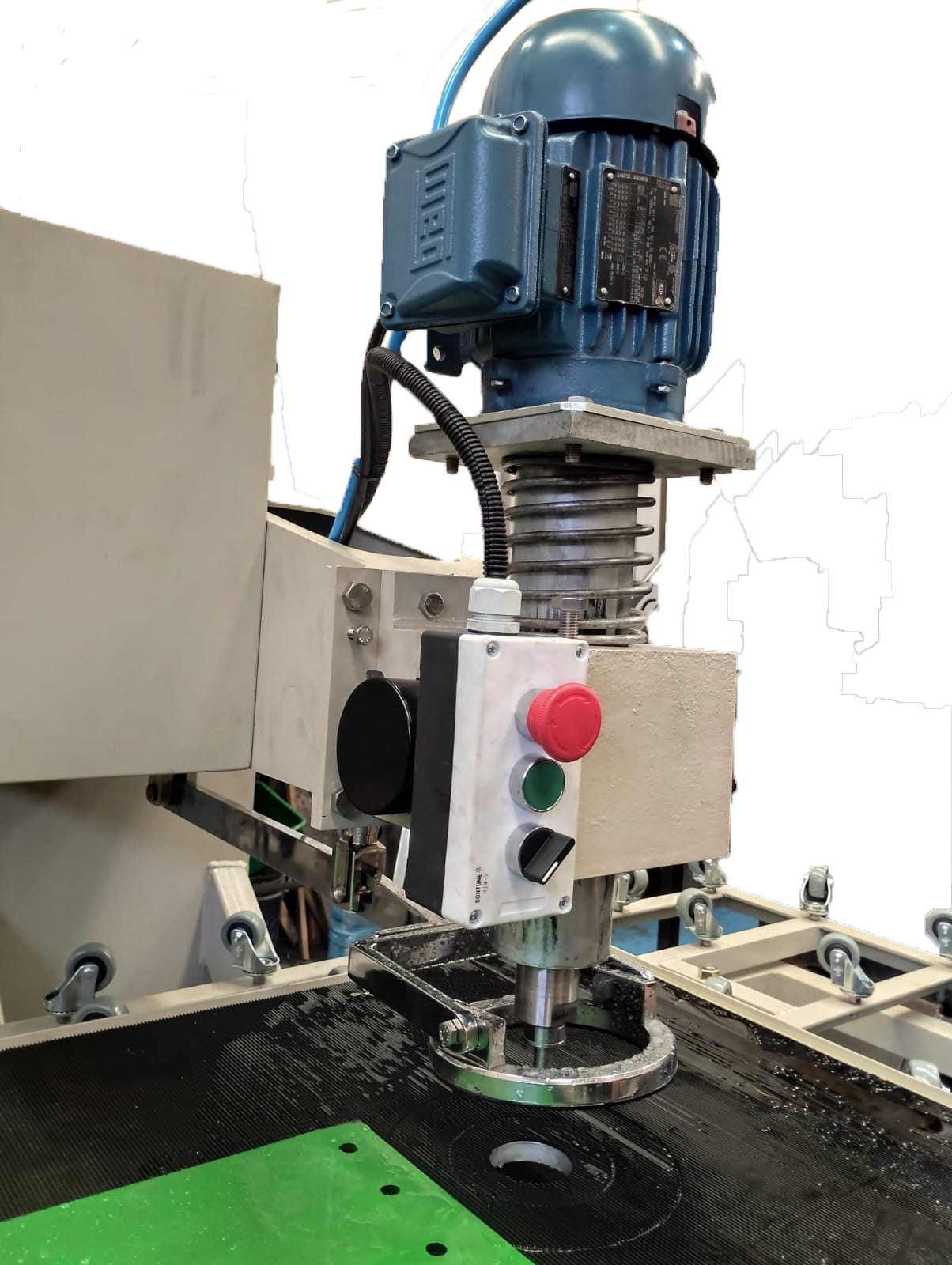

HORIZONTAL DRILL

REF.TS-80

Robust structure free of vibrations with drill chuck management in a single assembly connected from the motor shaft, central cooling provided with a tap and mechanical operation with lever.

  • With central table covered with Teflon bars to avoid scratching the glass.

Electric system

  • Control console containing:
  • Variable speed drive 700 to 3000 RPM.
  • Engine guard 1.
  • Linear potentiometer 1.
  • Speed indicators 6.
  • Three-phase voltage 220V.
  • 1.5 HP motor1.
